Description

ABB 5SHX06F6004 Data Communication and Processing Components in Stock

Product Introduction

 https://www.dcsplc.cn

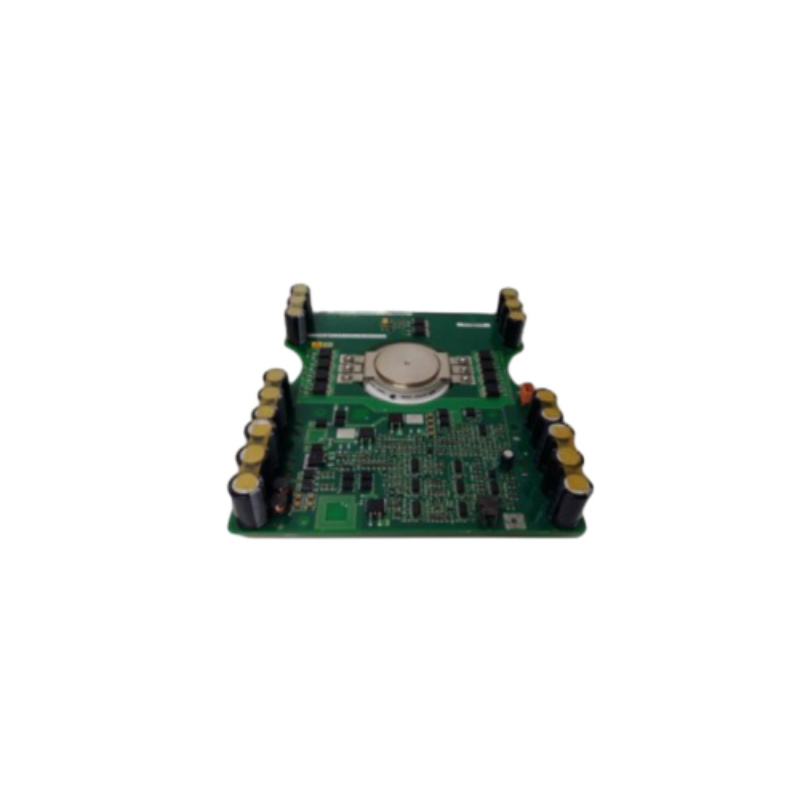

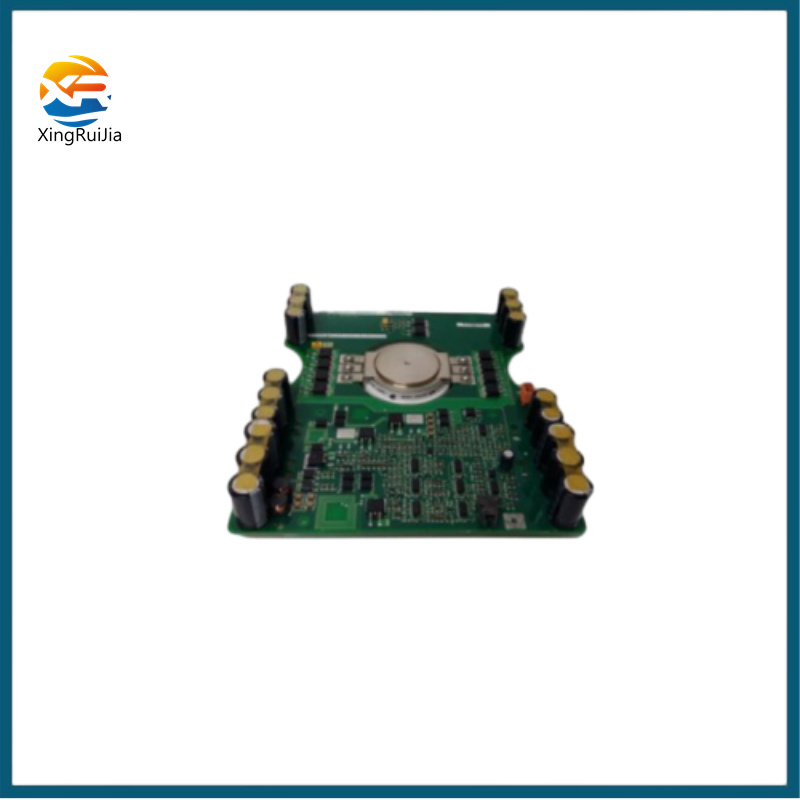

ABB 5SHX06F6004 is a multifunctional power module with multiple applications and features. The following is detailed information about the product:

Product type:

ABB 5SHX06F6004 is a thyristor module, also known as an integrated gate commutated thyristor (IGCT).
It is mainly used to control electricity, especially to regulate the voltage and current of AC power sources, in order to achieve precise power control and regulation.
Main functions:

High breaking capacity: Advanced arc breaking technology is used to effectively prevent damage caused by electrical faults.
High operating frequency: suitable for high-frequency operating environments.
The pulse output width is 1 millisecond/500 hertz, the overvoltage protection is 45 volts DC, the overcurrent limit is 600 milliamps per contact, the overheat protection is a typical value of 175 degrees Celsius, the minimum value is 150 degrees Celsius, the maximum output current of each channel is 200 milliamps, and the isolation protection is 3 kilovolts DC or 2 kilovolts AC voltage.
Specification parameters:

Input voltage: 24V DC.
Communication protocol: Ethernet/IP.
Working temperature range: -25 degrees Celsius to 70 degrees Celsius.
Dimensions: 140mm in length, 70mm in width, and 95mm in height.
Weight: 0.5 kilograms.
Application scenarios:

Widely used in industrial automation and power system control, such as stepper motor drivers, DC speed regulation pressure plates, and precise position control in various industrial and building applications.
Other features:

It has programmable functions and can be customized and adjusted according to actual application needs.
Fast switch speed, small switch loss, opening and closing time of about 200 nanoseconds, 1000 volt equipment can be turned off within 2 seconds.
Origin and Warranty:

The place of origin is Switzerland.
Provide a one-year warranty.
ABB 5SHX06F6004 is a high-performance power module widely used in industrial automation and power system control fields. It has high interruption capability, high operating frequency, and multiple protection functions, which can meet the needs of various complex applications.
