Description

BENTLY 3500 digital output module provides thoughtful service

Product Introduction

 https://www.dcsplc.cn

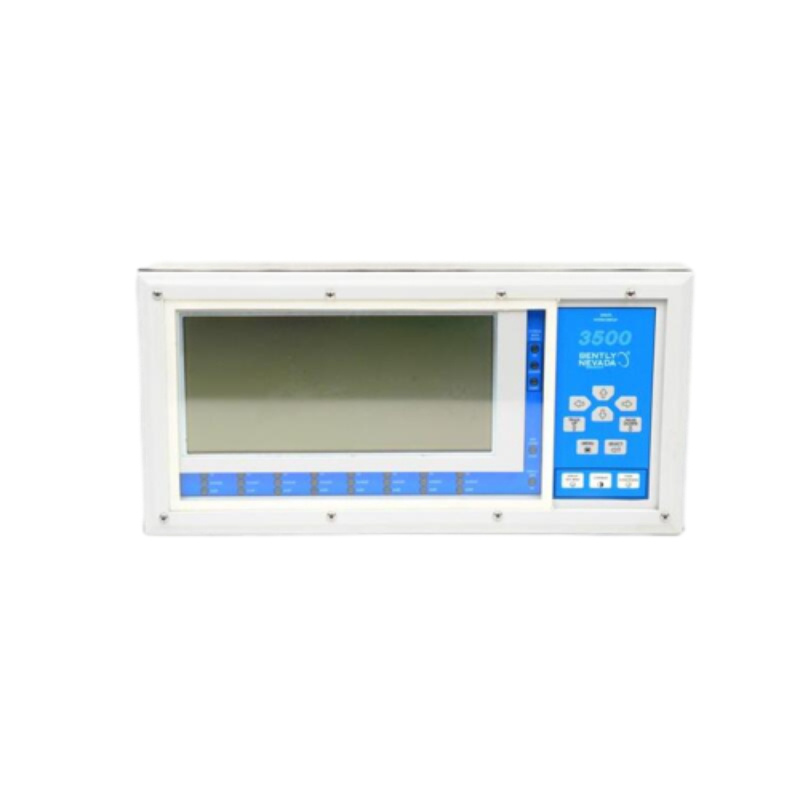

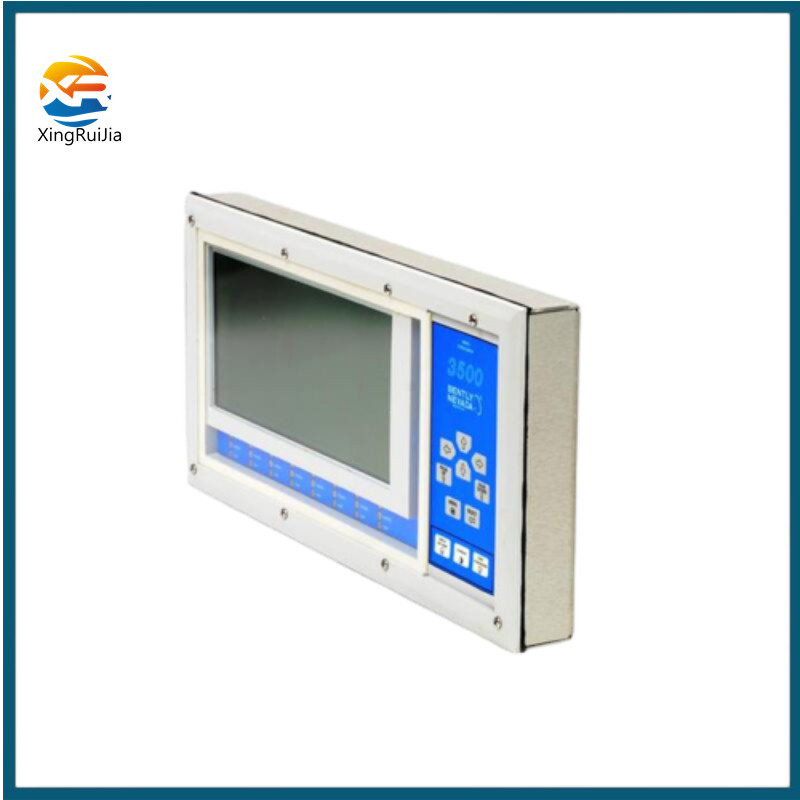

Bently 3500 is an advanced mechanical condition monitoring system developed by Bently Nevada, widely used in various industrial fields, especially in the oil, gas, and power industries. This system provides continuous online vibration monitoring to protect rotating machinery from premature or unnecessary shutdowns.
Main functions and features
High precision measurement:
The Bently 3500/53 detection module can provide accurate vibration and displacement measurement data, and monitor the operation status of the equipment in real time.
Other models such as 3500/42M also have high-resolution measurement capabilities and can respond quickly.
Multiple monitoring parameters:
The system can monitor various parameters including vibration, displacement, velocity, etc., providing important information for early identification of mechanical faults such as unbalance, misalignment, shaft cracks, and bearing failures.
For example, the 3500/46M water pressure monitor can accept inputs from proximity, seismic, and air gap sensors, and provide various vibration and displacement measurements by comparing calibration signals with user programmable alarms.
Modular design:
The 3500 system adopts a modular design, including different sensors and modules, such as the 3500/25 Keyphasor module, 3500/40M Proximity module, etc. These modules can be flexibly combined to meet different application requirements.
This design enables the system to adapt to different installation environments and requirements. For example, the 3500/15 power module is a half height module that must be installed in the slot on the left side of the rack.
Communication protocols and integration capabilities:
The 3500 system supports Modbus communication protocol and can be integrated with EGD protocol compatible controllers (such as GE Mark VIe controllers) through the 3500/91 EGD gateway.
This powerful communication capability ensures the high scalability of the system and seamless integration with other systems.
Safety and Protection:
The 3500 internal standardized system provides explosion protection and is suitable for installing sensor systems in hazardous areas.
In addition, there are specialized weatherproof enclosures available to protect the system from adverse environmental conditions.
Wide application and reliability:
Since the 1960s, Bently Nevada has launched seven generations of products, each of which has become one of the most successful monitoring platforms.
At present, over 85000 sets of 3500 systems have been installed worldwide, renowned for their high standards and reliability in the most demanding applications of the oil and gas industry.
technical specifications
Input voltage: 24V DC
Output voltage: 4~20mA
Working temperature: -40 ℃~85 ℃
Communication protocol: Modbus, EGD (version 2.01)
Application examples
In the oil and gas industry, the 3500 system is used to monitor the status of critical equipment, ensuring the safety and stability of the production process.
In the power industry, this system is used to monitor the vibration and displacement of generator sets to prevent large-scale power outages caused by mechanical failures.
