Description

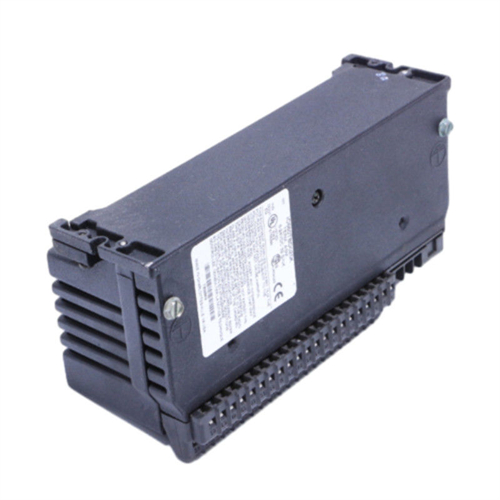

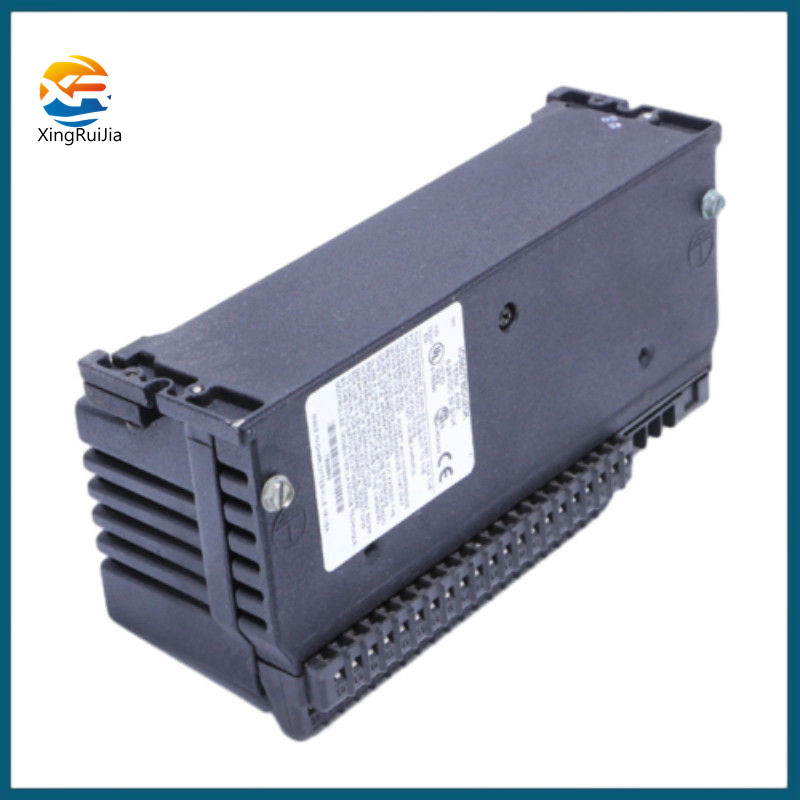

GE UR8GH redundant system configuration DCS card

Product Introduction

 https://www.dcsplc.cn

GE UR8GH is a multifunctional module produced by General Electric (GE), widely used in industrial automation and power protection systems. This module has multiple functions and features, suitable for different application environments.

Product type and function
Universal relay: UR8GH is a universal relay with basic protection functions.
CT/VT module: UR8GH can be used as a current transformer (CT) and voltage transformer (VT) module, providing sensitive grounding function, enhancing diagnostic capabilities, and reducing overvoltage and overcurrent levels that relays cannot monitor and manage, ensuring the safe and stable operation of the power system.
Input/Output Module: UR8GH can also serve as an input/output module, connecting CPU and on-site I/O devices or other external devices, supporting multiple communication modes such as UART and I2C, with a maximum data transfer rate of 1 Mbps.
Physical parameters
Weight: The module weighs 1.36 kilograms (approximately 2.50 pounds).
Size: The sizes provided by different sources may vary slightly, for example, some descriptions mention sizes of 20mm x 15mm x 2mm, while others are 263 x 58 x 28mm.
Working temperature range: -40 ° C to 85 ° C.
application area
UR8GH is widely used in the following fields:

industrial automation
Power protection system
Infrastructure industries such as energy, transportation, finance, and communication
Smart grid, power storage, smart buildings, etc.
Other characteristics
Compatibility: The UR8GH module is compatible with multiple communication protocols, enabling efficient interaction and flexibility in information acquisition.
Scalability: It can also be used as a digital expansion module to further expand the system’s functionality.

GE UR8GH redundant system configuration DCS card
