Description

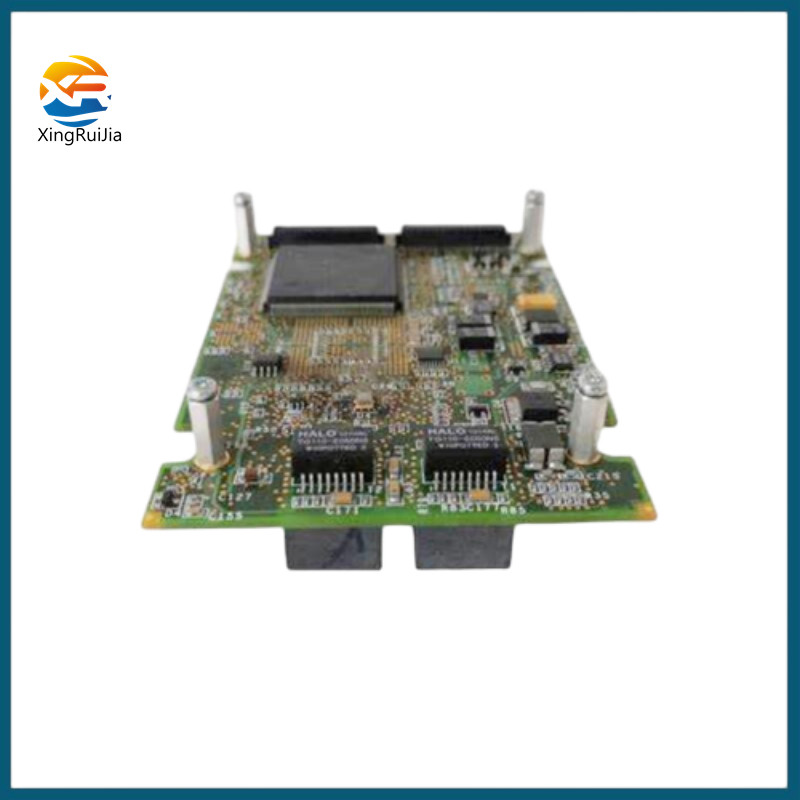

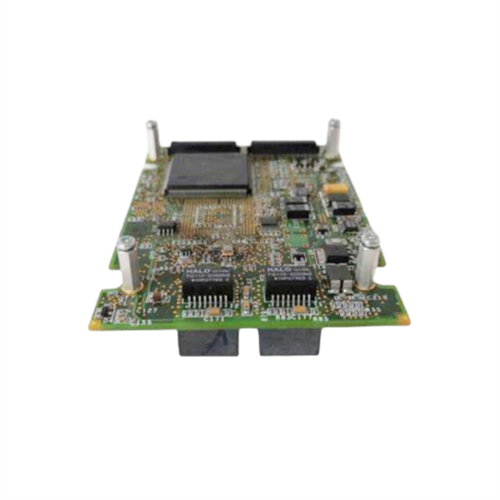

GE VMIVME-7698 Bus Board DCS Accessories

Product Introduction

 https://www.dcsplc.cn

GE VMIVME-7698 is a high-performance single board computer with VME bus, widely used in industrial automation, scientific research, communication, aerospace and other fields. This product has multiple models and configurations to meet different application needs.
Main features:
Processor: The VMIVME-7698 series typically uses Intel Celeron or Xeon processors, such as the VMIVME-7698-150 model based on the Xeon E3 processor.
Memory: Supports up to 512 MB of PC133 SDRAM and expands through a single SO-DIMM slot.
Display: Equipped with an internal AGP SVGA controller, supporting graphics output up to 1280 x 1024 resolution.
Interface: Provides a wide range of interface options, including RS-232, USB, Ethernet controllers, etc.
Working temperature range: suitable for wide temperature environments, with a working temperature range of -10 ℃ to 60 ℃.
Power supply: Supports 12V DC power input.
Other functions: It has transparent PCI to VME bridging function and can be used as a system controller or peripheral CPU in multi CPU systems.
Application areas:
Industrial automation: Due to its high reliability and stability, it is suitable for various industrial control systems.
Military and aerospace: equipped with anti vibration and anti impact design, particularly suitable for environments with high reliability and stability requirements in these fields.
Research and Communication: Suitable for application scenarios that require high-performance computing and data processing.
Special modules:
VMIVME-7698-345 350-017698-345 B: This is a high-performance VME bus module with various advanced functions and features, such as analog-to-digital conversion, redundant power supply design, and heat dissipation optimization.
VMIVME-7698-146: Equipped with a Celeron single slot Socket 370 processor, supporting Windows NT, Windows 2000, Linux, VxWorks, QNX, and Solaris operating systems.
