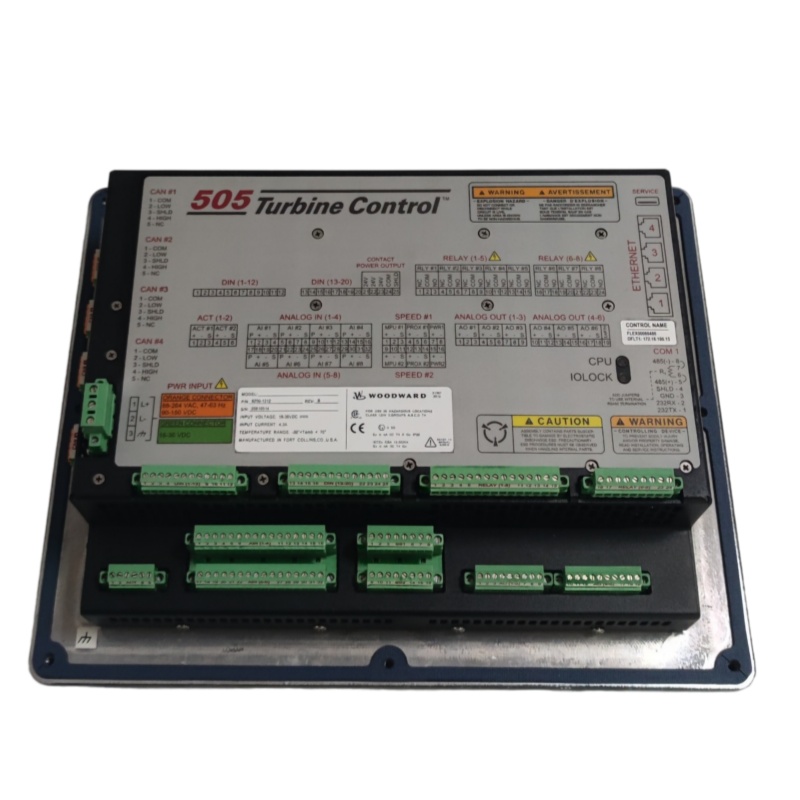

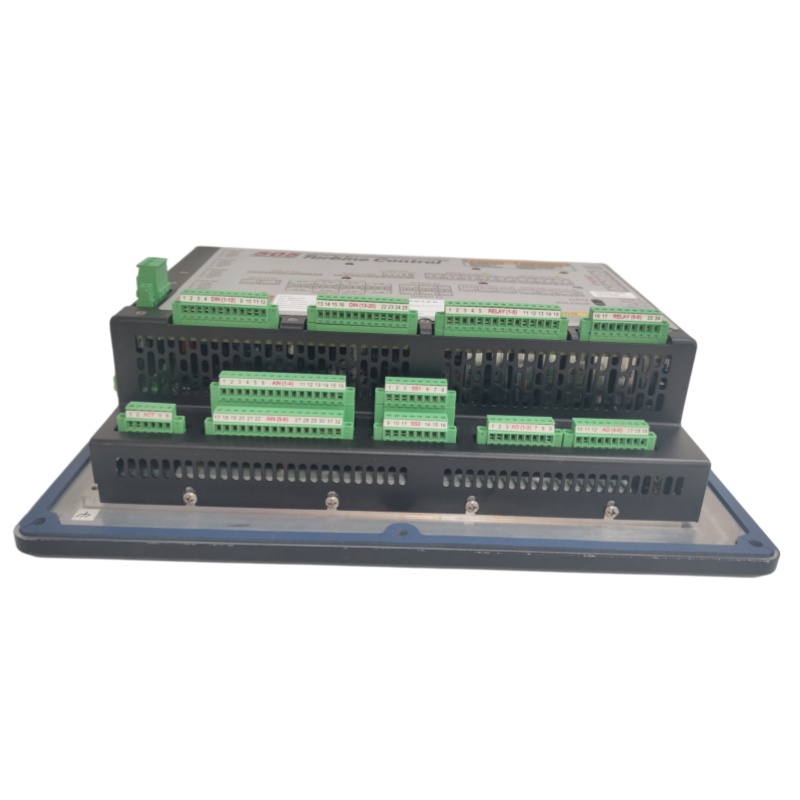

Woodward 8200-1312 | Hazardous Location Turbine Controller

Core Product Summary (Brand / Model / Key Attributes)

Woodward 8200-1312 is a 505XT series digital governor engineered for steam turbine speed, load, extraction and admission control. This panel-mounted controller combines closed-loop governing logic, safety interlock functions, and a built-in graphical HMI in a single integrated unit, built for operation in hazardous and marine environments.

The controller operates from an 18–36 Vdc low-voltage DC supply. It includes redundant speed inputs, multi-channel analog and digital I/O, actuator drive outputs, and multiple communication ports. The unit features conformal coated circuit boards, ATEX Zone 2 and marine type approvals, and native support for turbine simulation, real-time trending and steam map visualization for extraction/admission turbine configurations.

Key Technical Specifications

Detailed Product Overview

Woodward 8200-1312 is a dedicated single-unit turbine controller within the 505XT family, designed to manage full steam turbine operation from startup sequencing through steady-state speed and load regulation. It supports extraction and admission turbine control, which allows independent management of steam extraction and inlet admission points for process steam and power generation balance.

The integrated front-panel HMI provides local operator access to setpoints, alarm status, real-time trending and steam map graphics that plot turbine operating points against defined extraction limits. A built-in turbine simulator enables offline configuration, logic testing and operator training without live turbine operation. OptiTune adaptive control algorithms adjust PID response dynamically to compensate for changing turbine and actuator characteristics across operating ranges.

This variant is built for hazardous and marine environments. The G3 conformal coating protects internal electronics from corrosive contaminants such as hydrogen sulfide and salt-laden air. The ATEX Zone 2 certification permits installation in areas where flammable gas or vapour may be present under abnormal conditions. Onboard I/O removes the requirement for separate base or remote I/O racks for many turbine packages, while LinkNet-HT distributed I/O can be added when additional signal points are required.

Configuration and service access are available over Ethernet and serial interfaces, supporting connection to plant DCS systems, supervisory HMI and Woodward service software. The controller includes configurable safety interlock logic and relay outputs for trip and alarm signalling.

Applications & System Role

The Woodward 8200-1312 serves as the primary turbine governing controller for steam turbines equipped with extraction and admission steam paths. It sits at the turbine package control level, accepting speed feedback from magnetic or proximity probes, plus analog signals for pressure, temperature and process flow. The controller calculates valve positioning commands and drives servo actuators to regulate turbine speed, generator load and extraction steam pressure.

It interfaces with plant DCS or SCADA networks to receive remote setpoints and transmit operating data, alarms and trending values. It also executes local safety interlock logic and trip relay outputs. This unit is suited to turbine packages deployed in marine propulsion, cogeneration and process plants classified as ATEX Zone 2 hazardous locations.

Verification & Troubleshooting Notes

Use the front-panel HMI to verify controller identity, firmware revision, configured turbine type and active I/O status before commissioning. Check speed input signal amplitude and frequency at the terminal block when speed reading faults appear; verify transducer wiring and probe air gap.

For communication connection failures, confirm network termination, cable integrity, node addressing and protocol selection. Analog signal faults should be verified by measuring loop current at the controller terminals and sensor side. Observe LED and HMI alarm codes for diagnostic direction; alarms may originate from sensor failure, interlock trip conditions, wiring faults or configuration mismatches.

Do not perform component-level circuit board repair. Any firmware update must use matching Woodward service software and approved firmware files for the exact part number and hardware revision. All hazardous-area installation wiring and barrier requirements must follow the certification documentation.

FAQ

Q: What is Woodward 8200-1312? A: Woodward 8200-1312 is a 505XT series digital governor, a panel-mounted integrated controller for steam turbine speed, load, extraction and admission control.

Q: Which series does the Woodward 8200-1312 belong to? A: It belongs to the Woodward 505XT digital governor series.

Q: What power supply does Woodward 8200-1312 require? A: It uses an 18–36 Vdc low-voltage DC power supply.

Q: What communication interfaces are available on Woodward 8200-1312? A: The controller includes Ethernet, RS485, CANOpen and Modbus communication interfaces.

Q: What approvals apply to Woodward 8200-1312? A: It carries ATEX Zone 2 certification and marine type approval.

Q: Does Woodward 8200-1312 have a built-in display? A: Yes, it features an integrated 8.4-inch TFT color touchscreen graphical HMI.

Q: What is the turbine simulator function on Woodward 8200-1312 used for? A: The turbine simulator enables offline testing, configuration validation and operator training without live turbine operation.

Q: Can Woodward 8200-1312 control extraction and admission steam turbines? A: Yes, it supports control logic for extraction and admission turbine configurations.
